Explain Tab Reference
The Explain tab generates and stores LLM-powered explanations of functions and instructions, with integrated security analysis.
Purpose
The Explain tab helps you build a documented understanding of a binary by:
- Generating detailed explanations of functions at all IL levels
- Providing security assessments and risk analysis
- Storing explanations for later reference
- Allowing you to edit and refine the LLM’s output

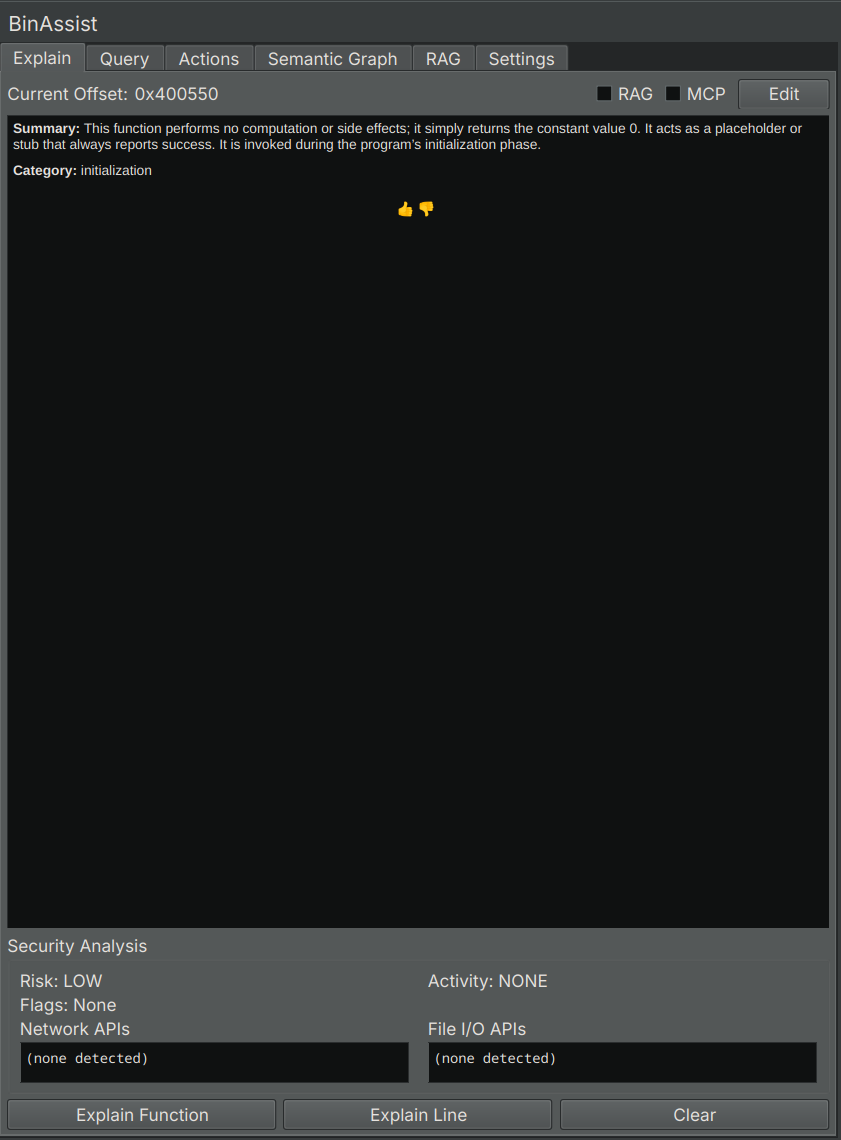

UI Elements
Analysis Buttons
| Button | Description |
|---|---|
| Explain Function | Analyze the entire current function |
| Explain Line | Analyze the specific instruction at the cursor |
Enhancement Options
| Option | Description |
|---|---|
| RAG | Include context from indexed documents (see RAG Tab) |
| MCP | Enable tool calling for enhanced analysis |
When RAG is enabled, relevant documentation from your indexed documents is included in the LLM prompt. When MCP is enabled, the LLM can call tools to gather additional information.
Display Area
The main display area shows the LLM’s explanation rendered as markdown. This includes:
- Function purpose and behavior
- Parameter descriptions
- Return value analysis
- Notable implementation details
Security Analysis Panel
Below the explanation, an expandable panel shows security-related analysis:
| Field | Description |
|---|---|
| Risk Level | Overall risk assessment (Low, Medium, High, Critical) |
| Activity Profile | Categories of function behavior (e.g., “Data Processing”, “Network Communication”) |
| Security Flags | Detected security-relevant patterns |
| Network APIs | Network-related function calls detected |
| File I/O APIs | File operation calls detected |
Edit Mode
Toggle the Edit button to modify the explanation:
- Click Edit to enter edit mode
- Modify the text as needed
- Click Save to store your changes
Your edits are saved to the analysis database and will be displayed the next time you view this function.
RLHF Feedback
Use the thumbs up/thumbs down buttons to provide feedback on the explanation quality. This data is stored in the RLHF database and can be used for model improvement.
Function Context
The Explain tab automatically detects the current function based on your cursor position in Binary Ninja. The function name and address are displayed at the top of the tab.
If no function is selected, the analysis buttons will be disabled.
Analysis Levels
When explaining a function, BinAssist analyzes it at multiple IL (Intermediate Language) levels:
- LLIL: Low-Level IL - closest to assembly
- MLIL: Medium-Level IL - simplified operations
- HLIL: High-Level IL - closest to source code
This multi-level analysis provides a comprehensive understanding of the function’s behavior.
Stored Explanations
Explanations are stored in the analysis database, keyed by: - Binary SHA256 hash - Function address
When you return to a previously explained function, the stored explanation is displayed automatically. This allows you to build up documentation across your analysis sessions.
